Product Overview
A professional Dante-enabled stage box that expands a compatible digital mixing system with 16 remote microphone/line inputs and eight line-level outputs. The Yamaha Tio1608-D2 allows microphones, monitors and other audio connections to be positioned near the stage while carrying multichannel audio over a single network connection.
The Tio1608-D2 integrates directly with Yamaha DM3-D and TF Series consoles, providing remote preamplifier control and a streamlined digital audio workflow.
At a Glance

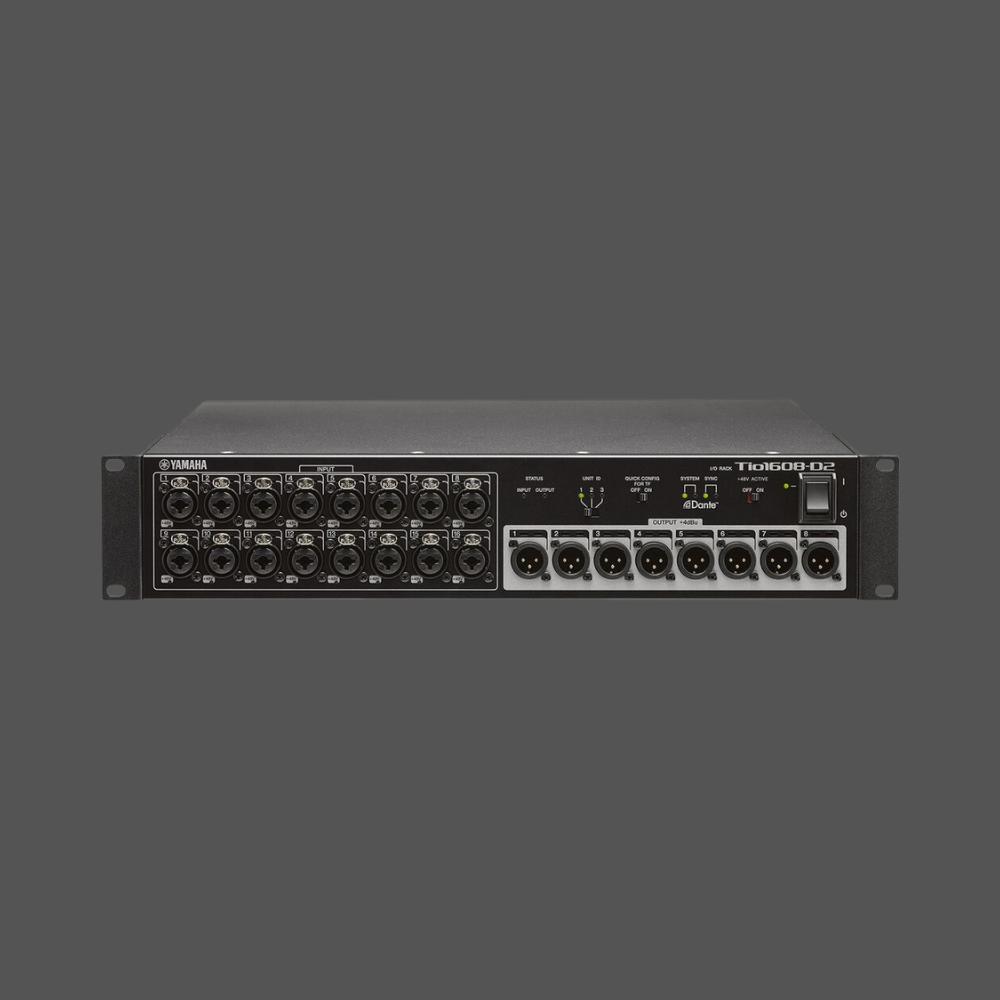

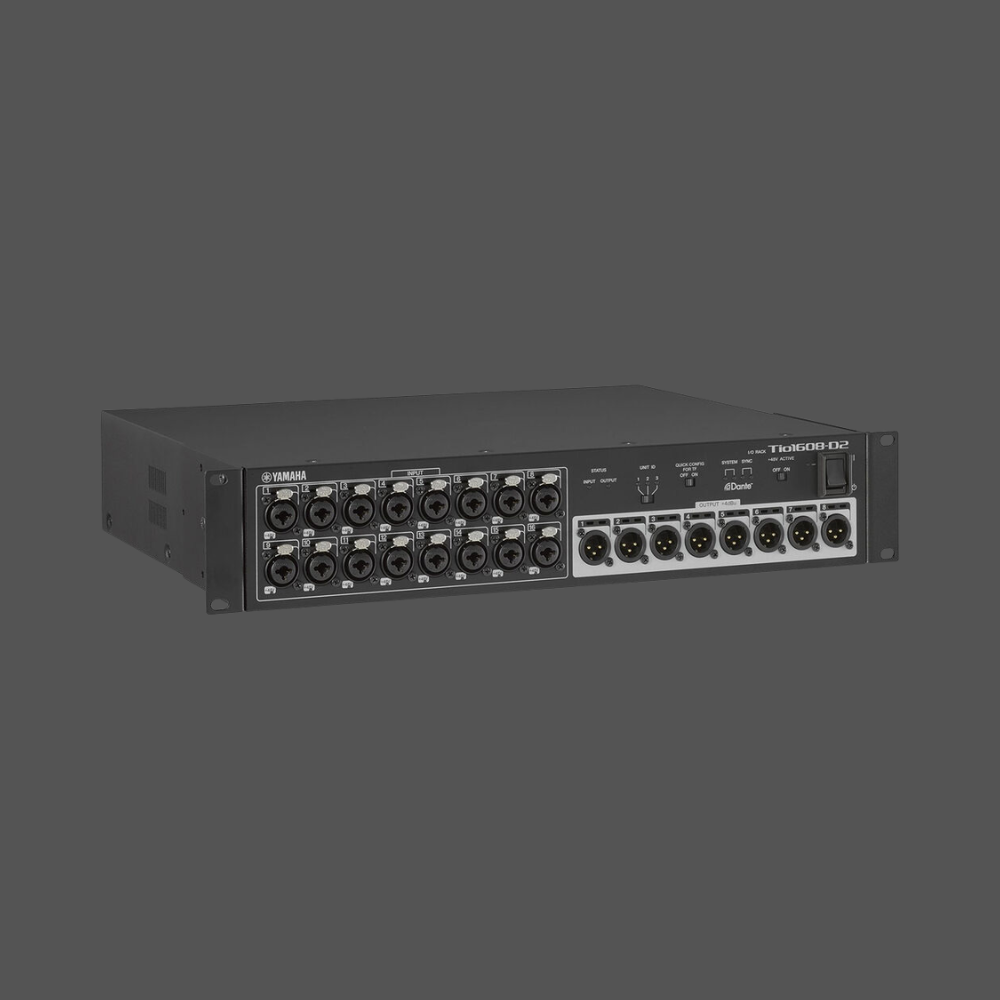

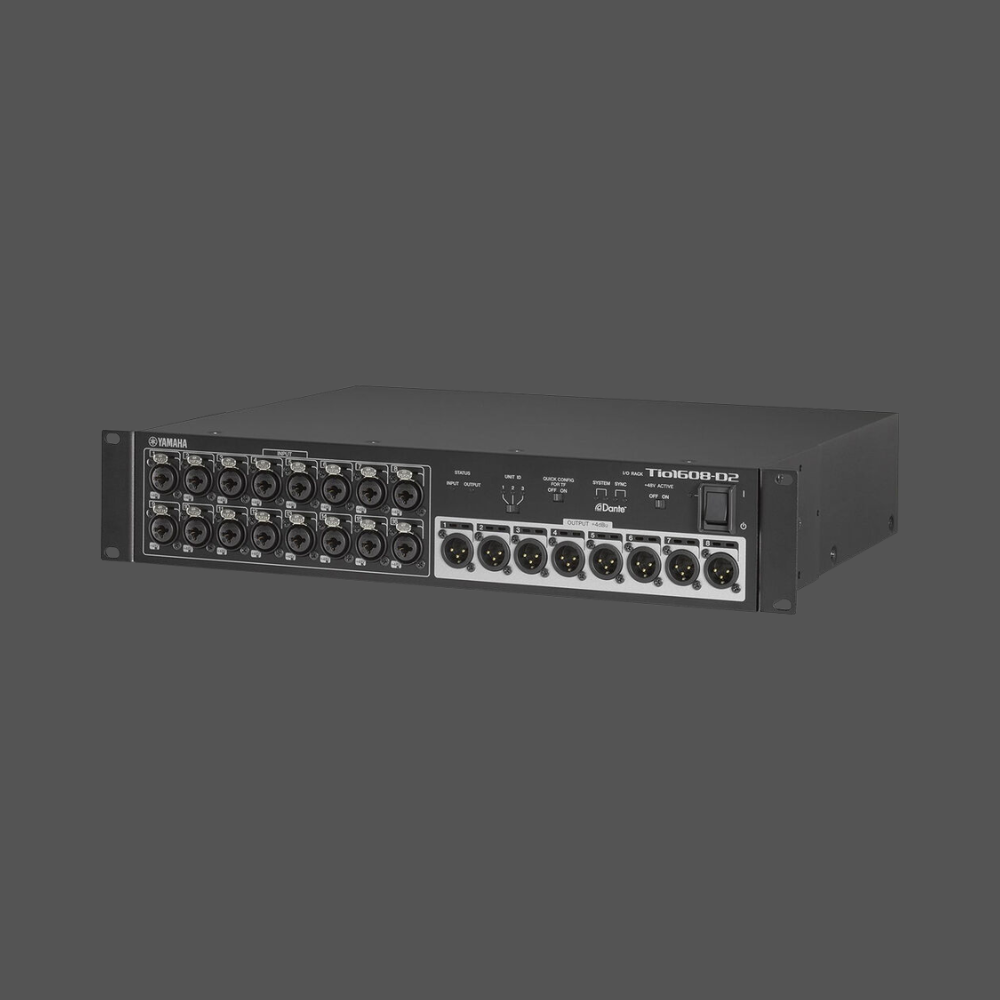

- One Yamaha Tio1608-D2 Dante-equipped I/O rack
- 16 balanced microphone/line inputs
- Combination XLR and quarter-inch TRS input connections
- Eight balanced XLR line outputs
- 16 channels transmitted through Dante
- Eight channels received through Dante

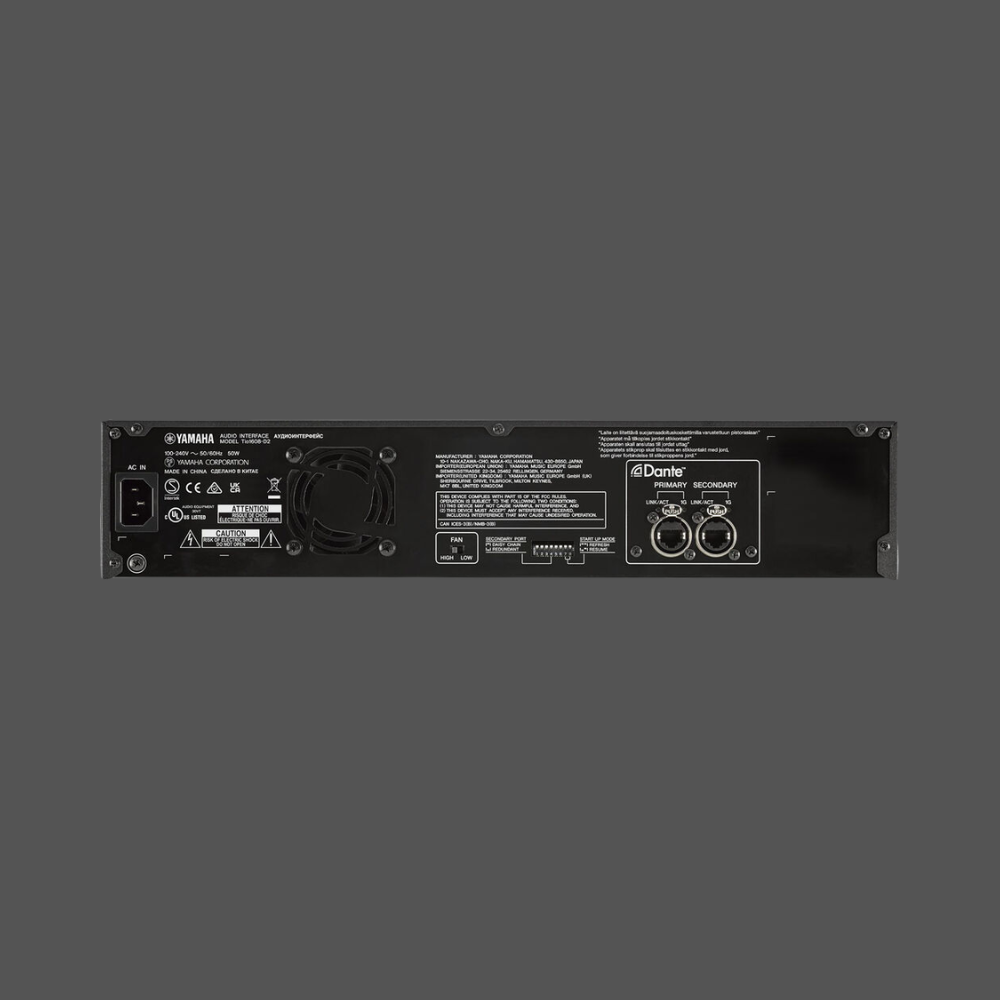

- Primary and secondary etherCON network connections
- Remote preamplifier control with compatible Yamaha consoles
- Individually selectable 48V phantom power
- Support for 44.1, 48, 88.2 and 96 kHz operation
- 24-bit and 32-bit Dante audio support
- Standard 2RU rackmount design
- Universal 100–240V power operation
- Power cable included
Recommended Applications
- Yamaha DM3-D digital mixing systems
- Remote stage input and output
- Corporate events and conferences
- Live bands and performances
- Houses of worship
- Monitor mixing systems
- Broadcast and livestreaming
- Multitrack recording
- Installed and distributed audio systems
- Long-distance digital audio transport
Important Operating Information
The Tio1608-D2 is an audio interface and does not function as a standalone mixer. It requires a compatible Dante-enabled mixing console, computer interface or audio system.
Dante operation requires appropriate Cat5e or better network cabling and proper device configuration. Remote preamplifier control with the Yamaha DM3-D and other supported systems is available through the primary network connection.
The mixing console, network switch, Dante controller computer, analog audio cables and network cabling are not included unless specifically listed with your rental. A technician familiar with Dante networking is recommended for advanced or multi-device systems.
